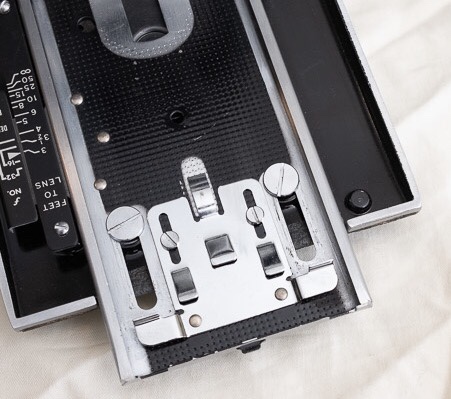

The old infinity stop or lens stop needs to be replaced due to the new filmplane position. See description below and then the images,

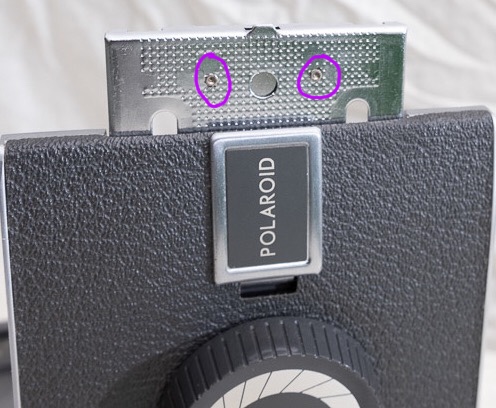

  1. Remove the two screws
  2. Drill out and remove the two rivets

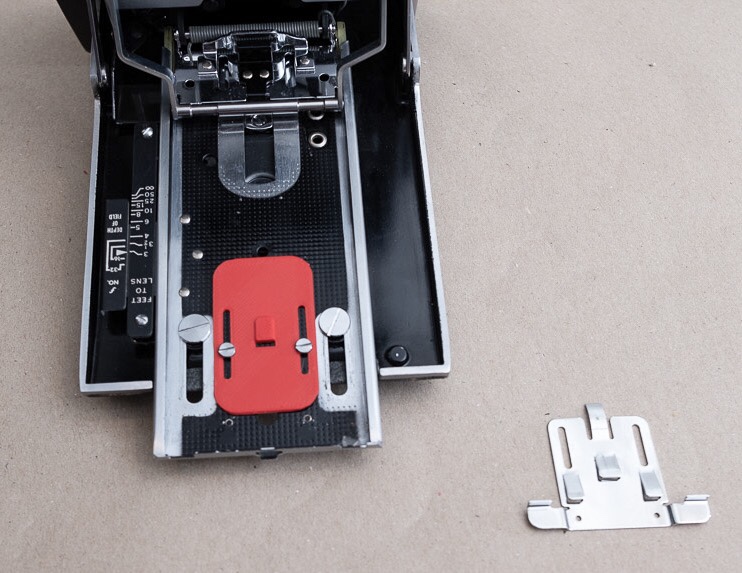

  3. Use the two screws to mount the new infinity stop, approximately as shown.
  4. The position will be adjusted as the last part of the conversion
